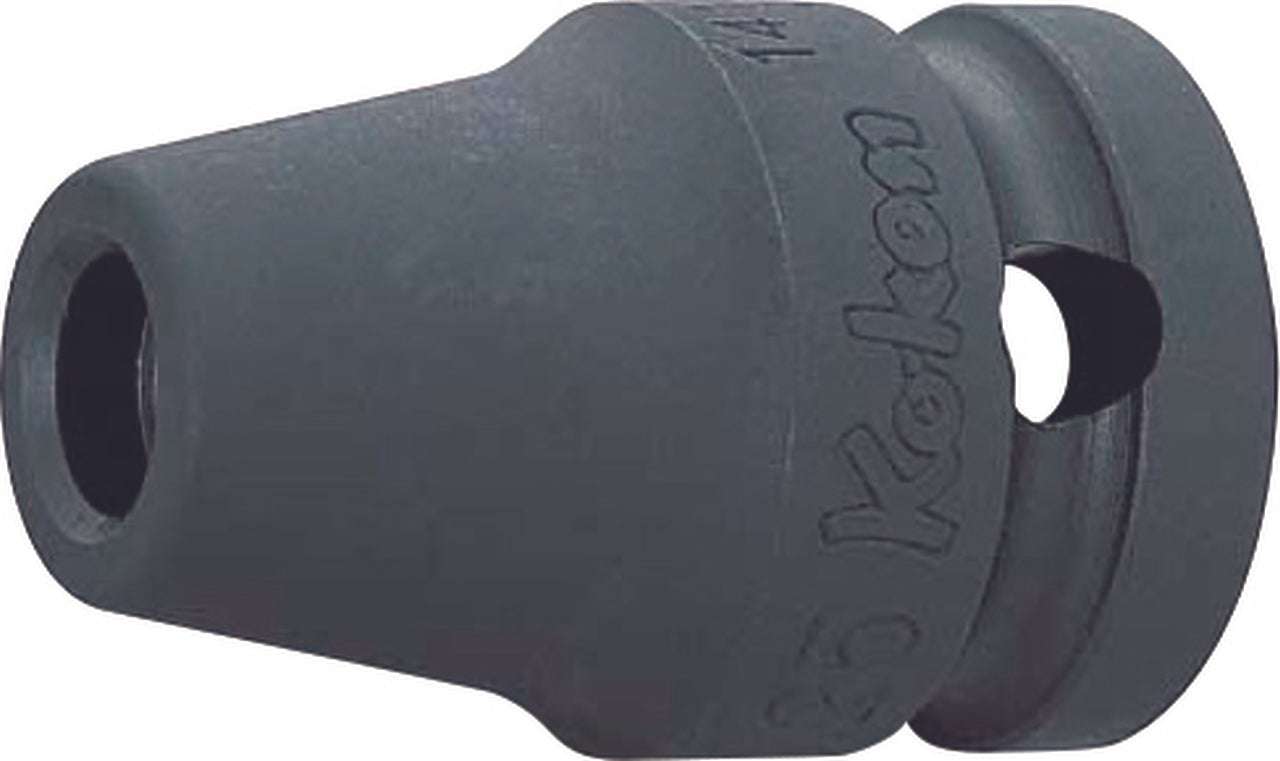

Ko-ken 14103M-10(1.5) 1/2 Sq. Dr. Stud Bolt Setter M10 X 1.5 Length 49mm

Ko-ken 14103M-10(1.5) 1/2 Sq. Dr. Stud Bolt Setter M10 X 1.5 Length 49mm

The 1/2" drive, stud setter Stud Bolt Setter is a special socket for installing a stud bolt. The bolt contact with a steel ball to prevent the bolt from sticking onto the socket. After installing the bolt, turn anti-clockwise to remove the socket.

Product Specifications

• Drive Shape: Square
• Input Drive Size: 1/2"
• Length: 49mm
• Output Size: M10 x 1.5
• Type: Impact Stud Bolt Setter
• Note: Depend on the stud bolt and using torque, 4103M/13103M/14103M may cause a scratch against the stud bolts or got stuck itself during a work
• Product Dimension (Refer Line Drawing Image):
• D1 Size: 17mm
• D2 Size: 25mm
• H Size: 18mm
• L Size: 49mm
