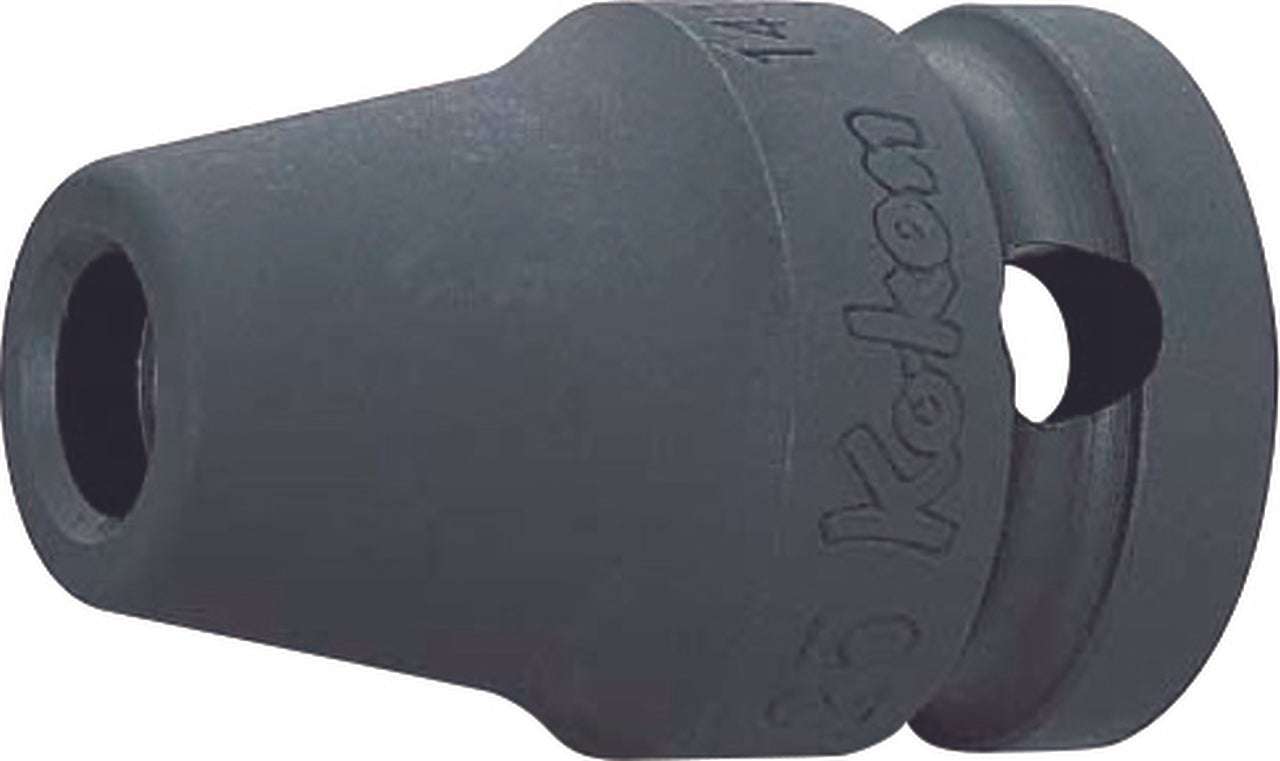

Ko-ken 14103M-8(1.25) 1/2 Sq. Dr. Stud Bolt Setter M8 X 1.25 Length 42mm

Ko-ken 14103M-8(1.25) 1/2 Sq. Dr. Stud Bolt Setter M8 X 1.25 Length 42mm

The 1/2" drive, stud setter Stud Bolt Setter is a special socket for installing a stud bolt. The bolt contact with a steel ball to prevent the bolt from sticking onto the socket. After installing the bolt, turn anti-clockwise to remove the socket.

Product Specifications

• Drive Shape: Square
• Input Drive Size: 1/2"
• Length: 42mm
• Output Size: M8 x 1.25
• Type: Impact Stud Bolt Setter
• Note: Depend on the stud bolt and using torque, 4103M/13103M/14103M may cause a scratch against the stud bolts or got stuck itself during a work
• Product Dimension (Refer Line Drawing Image):
• D1 Size: 14.5mm
• D2 Size: 25mm
• H Size: 15mm
• L Size: 42mm
