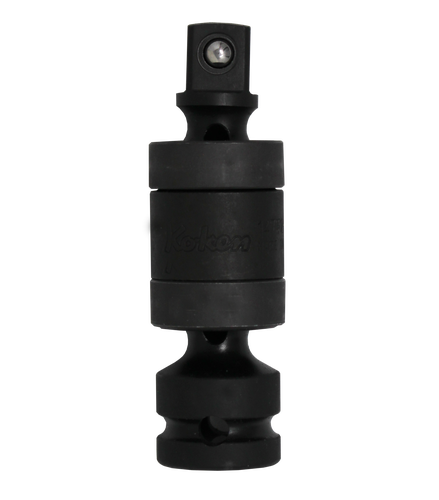

Ko-ken 14772-P 1/2 Sq. Dr. Universal Double Joint 1/2 Square Length 90mm Pin type

Ko-ken 14772-P 1/2 Sq. Dr. Universal Double Joint 1/2 Square Length 90mm Pin type

A universal double joint is a type of mechanical joint that allows two parts to connect and transmit rotational motion while providing flexibility in multiple directions. It is commonly used in automotive, industrial, and mechanical applications to transfer torque between shafts that are not in a direct line with each other. The "double joint" design allows for greater angles of movement compared to a single universal joint, making it especially useful in situations where space constraints or angles require more flexibility.

Product Specifications

• Drive Shape: Square
• Input Drive Size: 1/2"
• Length: 90mm
• Output Shape: Square
• Output Size: 1/2"
• Pin Type: Yes
• Type: Universal Double Joint
• Product Dimension (Refer Line Drawing Image):
• D1 Size: 27mm
• D2 Size: 25mm
• L Size: 90mm
