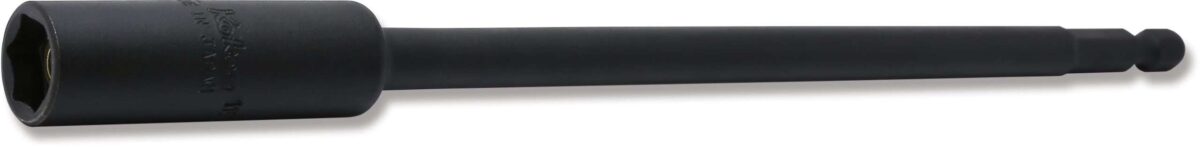

Ko-ken 115G.200-10FR 1/4 Hex Dr. Nut Setter with Plastic Protector 10mm 6 point Length 200mm Slide Magnet Turnable POM cover

Ko-ken 115G.200-10FR 1/4 Hex Dr. Nut Setter with Plastic Protector 10mm 6 point Length 200mm Slide Magnet Turnable POM cover

Sliding magnet system provides bolt clearance and magnetic function at the same time.

Product Specifications

• Drive Shape: Hexagon
• Input Drive Size: 1/4"
• Length: 200mm
• Opening: 6 Point
• Output Size: 10mm x 4.5 deep
• Outside Diameter (D): 16.9mm
• Slide Magnet: Yes - 26mm Travel
• Type: Protected Nut Setter with Sliding Magnet
• Turnable POM Cover: Yes
• Note: The Protectors could be broken with any Impacts. Please handle with care.
• Product Dimension (Refer Line Drawing Image):
• D Size: 16.9mm
• H1 Size: 4.5mm
• H2 Size: 26mm
• L Size: 200mm
