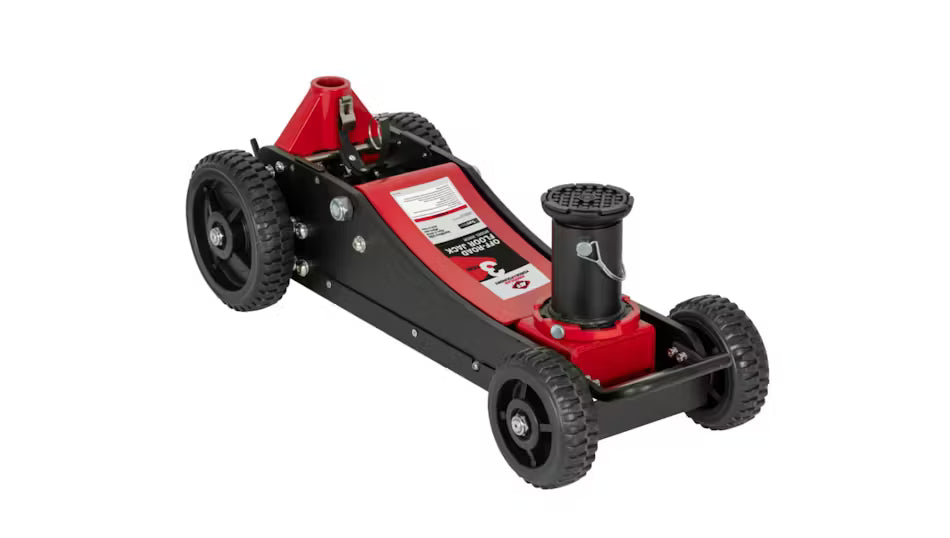

American Forge & Foundry Off Road Service Jack - 3 Ton Aluminum / Steel Hybrid - Double Pump - Min Hieght 5.9 Inch to 28.74 Inch Max Hieght

Features and Benefits:

• • 3 Ton Capacity Double Pumper hydraulic lift system quickly raises the saddle quickly from lowest height to max height in 8 pumps or less
  • 28.74” max lift height provides versatility needed to lift most cars, SUV�s off road vehicles and pick-up trucks
  • Heavy duty aluminum / steel hybrid frame for durability and ease of carrying
  • Jack is equipped with a adjustable saddle that extends in 3 increments of 4.96”, 6.22”, 7.48” or the extension can be removed completely to have a standard saddle.
  • Large front and rear wheels for easy maneuverability off road. Handle locks for easy positioning. Equipped with safety bypass valve to prevent overloading. Meets or exceeds 2019 ASME PASE Standards
  • Specifications:
  • Color: Red/Black
  • Capacity: 3 Ton
  • Minimum Height: 5.9"
  • Maximum Height: 28.74"
  • Power Type: Hydraulic
  • Operation Type: Manual
  • Quick Lift Feature: Double Pumper
  • Working Air Motor Pressure: N/A
  • Release Assembly: U-Joint
  • Chassis Type: Short Chassis Service Jack
  • Chassis Length (in.): 31.22"
  • Chassis Width (in.): 12.83"
  • Handle Type: Straight
  • Handle Length (in.): 45.12"
  • Handle Type (Pcs): 2
  • Saddle Size: 4.57"
  • Saddle Extension Size: 4.96" / 6.22” / 7.48”
  • Includes Saddle Pad: Yes
  • Saddle Pad Material: Rubber
  • Handle Bump Protector: Yes
  • Rear Casters: Qty 2
  • Front Wheels: Qty 2
  • Hydraulic Return Spring: Yes
  • Overload Bypass Valve: Yes
  • Handle Return Spring: Yes
  • Handle Docking Position: 90°
  • Handle Locking Positions: 90°
  • Service Parts Available: Yes
  • Duty Level: Heavy Duty
  • Weight (lb.): 79.86 Lbs.
  • Warranty: 1 Year
  • Certification: ASME/PASE 2019

 Established in 1963, American Forge & Foundry has built a long-standing tradition of providing premium quality products, exceptional service and outstanding value. Available through our network of distributor partners, our products can be found in heavy duty and automotive repair shops, military sectors, agriculture, and other demanding industries. From our extensive inventory of parts to the hundreds of service centers available nationwide our experienced team is committed to ensuring that the AFF brand stands for durability, safety, and customer care.
