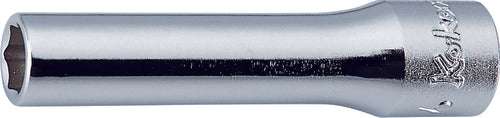

Ko-ken 2300A-9/16 1/4 Sq. Dr. Socket 9/16 6 point Length 50mm

Ko-ken 2300A-9/16 1/4 Sq. Dr. Socket 9/16 6 point Length 50mm

SAE, 1/4" drive, 6 Point, Deep, Chrome Hand Sockets. A six-point socket is designed to contact the head of a fastener well away from the corners so contact is made on the thickest part of the fastener. The edges of a socket are angled back a few degrees to allow the socket to slide easily over a fastener.

Product Specifications

• Drive Shape: Square
• Input Drive Size: 1/4"
• Length: 50mm
• Opening: 6 Point
• Output Size: 9/16"
• Type: 6-Point Deep Socket
• Product Dimension (Refer Line Drawing Image):
• D1 Size: 19.3mm
• D2 Size: 17.9mm
• H1 Size: 16mm
• H2 Size: 38mm
• L Size: 50mm
