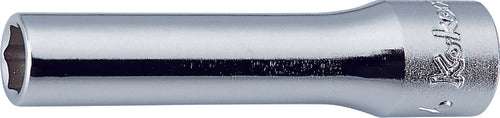

Ko-ken 2300MZ-10 1/4 Sq. Dr. Socket 10mm 6 point Length 50mm Z-series

Ko-ken 2300MZ-10 1/4 Sq. Dr. Socket 10mm 6 point Length 50mm Z-series

Chrome Hand Sockets, Metric, 1/4" drive, 6 Point, Deep. A six-point socket is designed to contact the head of a fastener well away from the corners so contact is made on the thickest part of the fastener. The edges of a socket are angled back a few degrees to allow the socket to slide easily over a fastener. Metric, 1/4" drive, 6 Point, Deep, Chrome Hand Sockets.

Product Specifications

• Drive Shape: Square
• Hardness: HRC 42
• Input Drive Size: 1/4"
• Length: 50mm
• Output Size: 10mm
• Type: 6 Point Deep Socket
• Product Dimension (Refer Line Drawing Image):
• D1 Size: 13.5mm
• D2 Size: 12.5mm
• H1 Size: 11mm
• H2 Size: 41mm
• L Size: 50mm
