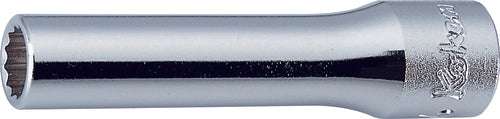

Ko-ken 2305A-11/32 1/4 Sq. Dr. Socket 11/32 12 point Length 50mm

Ko-ken 2305A-11/32 1/4 Sq. Dr. Socket 11/32 12 point Length 50mm

Chrome Hand Sockets, Metric, 1/4" drive, 12 Point, Deep. The design is normally only used for general purpose applications because it can greatly increase the chance of rounding or slipping off a nut or fastener. 12-points are preferred however because that are faster and more versatile to use than standard 6-points. The 12-point sockets can be used on square nuts and fasteners, and also offer double the amount of starting points.

Product Specifications

• Drive Shape: Square
• Input Drive Size: 1/4"
• Length: 50mm
• Opening: 12 Point
• Output Size: 11/32"
• Type: 12 Point Deep Socket
• Product Dimension (Refer Line Drawing Image):
• D1 Size: 12.5mm
• D2 Size: 11.7mm
• H1 Size: 10mm
• H2 Size: 40mm
• L Size: 50mm
